Sheet 1 of 5
Front elevation
Every piece starts here. A front view at 1:20, with the two numbers that matter to your room.
Sheet 2 of 5
Axonometric
Then the depth. The drawing turns so you can see how the piece sits against the wall.
Sheet 3 of 5
Material
Oak finish, banded on every edge. The same drawing, now as the object it describes.
Sheet 4 of 5
Exploded view
Every part has a job. The den, the sliding door, the feeding drawer, the channel for cables.
Sheet 5 of 5
Your dog
Change the dog and the drawing changes with it. Width, height and depth follow one rule.
- Drawing

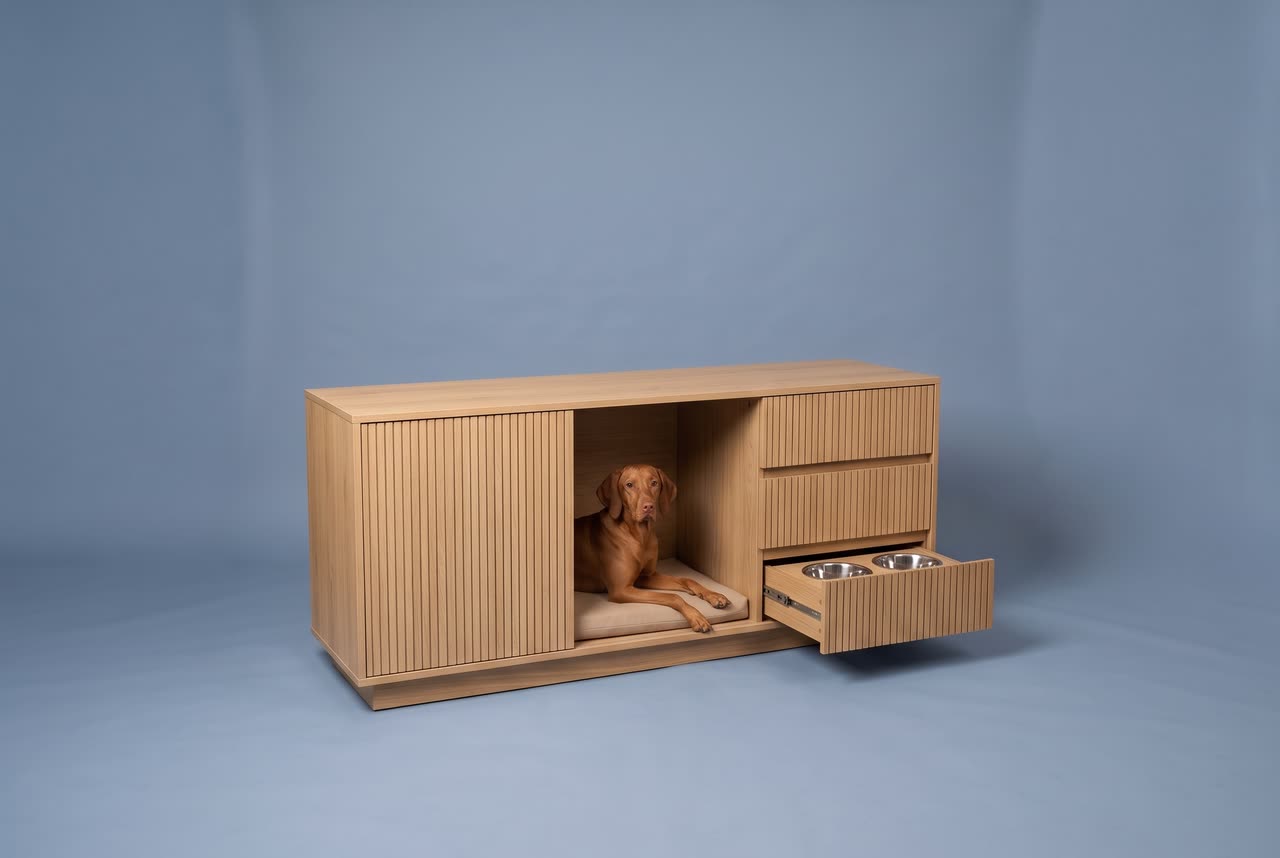

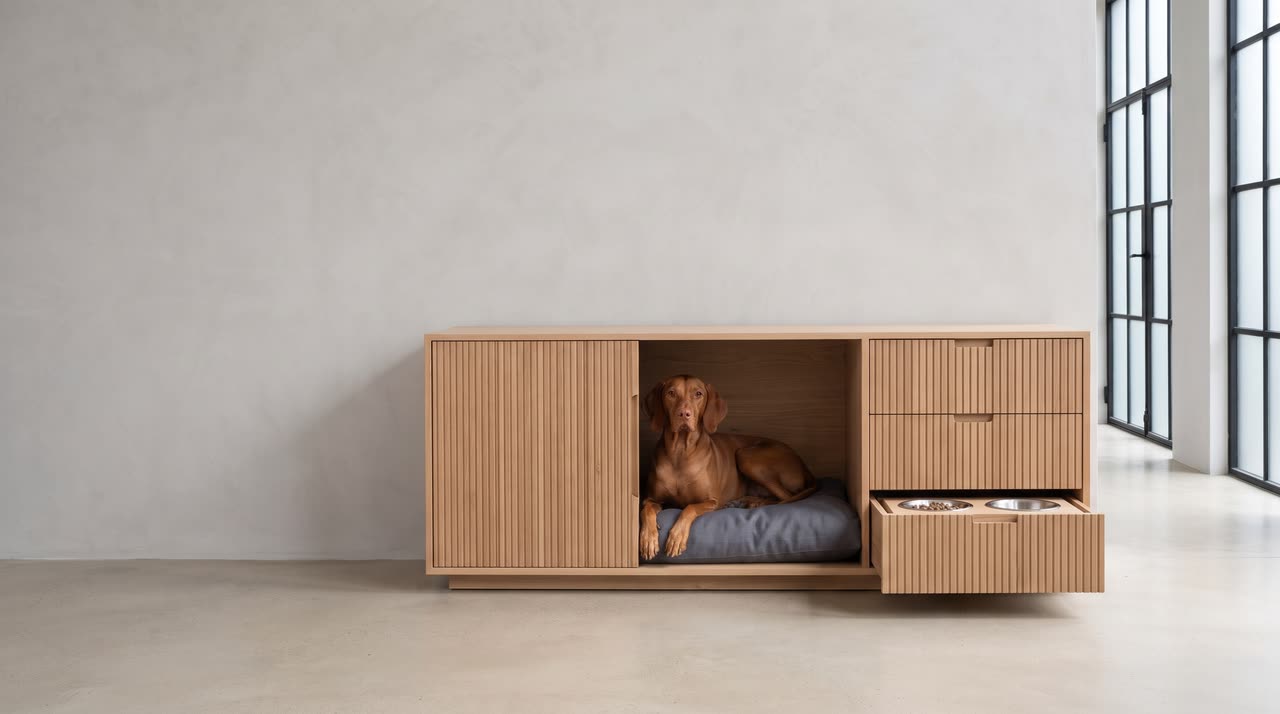

- Credenza
- Outside
- 225 x 70 x 85 cm
- Den inside
- 90 x 65 x 70 cm
- Dog
- Vizsla, 58 cm
